Duct Temperature Sensors

Automated Logic’s Duct Temperature Sensors feature medicalgrade closed cell foam to seal the probe insertion hole and to absorb vibration. Mounting tabs allow for easy installation directly to the wall of the duct. All Duct Units have etched Teflon leadwires and double encapsulated sensors to create a watertight package that can perform under real world conditions. Duct Units have probe lengths from 2” to 18”.

Duct Units come standard with a 2”x4” steel J-Box but are also available with no box, or BAPI-Box 2 enclosure, or a nylon and ABS plastic BAPI-Box 4.

FEATURES
  • Probe Lengths: 2”, 4”, 8”, 12”, and 18”
  • Series 304 SS Probes & Double Encapsulated Sensors
  • Closed Cell Foam Padding and Etched Teflon Leadwires
  • Several Enclosure Styles
SPECIFICATIONS
Environmental Operation Range:
  • Temperature Sensor: -40 °C to 100 °C
  • Humidity: 0 to 100%, non-condensing
Enclosure Material:
  • BAPI-Box: Polycarbonate, UL94, V-0
  • BAPI-Box 2: Polycarbonate, UL94, V-0
  • BAPI-Box 4: Nylon & ABS Plastic, UL94, V-0
  • J-Box Model: Galv. Steel
10K-2 Thermistor Sensor:
  • Resistance: 10 kΩ @ 25°C, -55 to 150°C range
  • Standard Accuracy: 0.2°C (±0.36°F) at 0 to 70°C
  • Dissipation Constant: 2.7 mW/°C
  • Stability(drift): Less than ±0.1°C (0.18°F) drift over 10 years
Enclosure Rating:
  • BAPI-Box or BAPI-Box 2: IP66, NEMA 4
  • BAPI-Box 4 Model: IP10 (IP44 with Knockout Plug)
  • J-Box Model: IP20, NEMA 1
Part Number Description
NSB-10K-2-D-12-BB2-A DUCT TEMP PROBE - BB2 ENCLOSURE - 12 IN. PROBE LOGO- ALC
NSB-10K-2-D-4-BB2-A DUCT TEMP PROBE - BB2 ENCLOSURE - 4 IN. PROBE LOGO - ALC

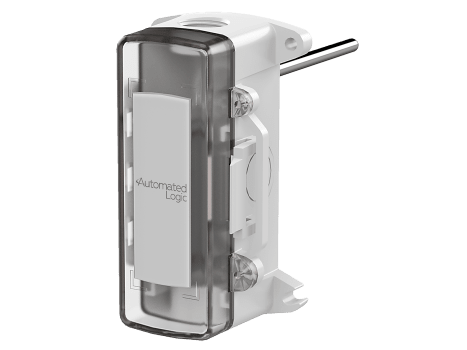

NSB-10K-2-D-8-BB2-A DUCT TEMP PROBE - BB2 ENCLOSURE - 8 IN. PROBE LOGO - ALC
NSB-10K-2-D-4-BB4-A DUCT TEMP PROBE - BB4 ENCLOSURE - 4 IN. PROBE LOGO - ALC
NSB-10K-2-D-8-BB4-A DUCT TEMP PROBE - BB4 ENCLOSURE - 8 IN. PROBE LOGO - ALC
NSB-10K-2-D-12-A DUCT TEMP PROBE - J-BOX ENCLOSURE - 12 IN. PROBE NO LOGO
NSB-10K-2-D-4-A DUCT TEMP PROBE - J-BOX ENCLOSURE - 4 IN. PROBE NO LOGO
NSB-10K-2-D-8-A DUCT TEMP PROBE - J-BOX ENCLOSURE - 8 IN. PROBE NO LOGO
NSB-10K-2-D-4-NB-10-A DUCT TEMP PROBE - NO BOX - 4 IN. PROBE - 10 FT LEADS NO LOGO
NSB-10K-2-D-4-NB-15-A DUCT TEMP PROBE - NO BOX - 4 IN. PROBE - 15 FT. LEADS NO LOGO
NSB-10K-2-D-4-NB-5-A DUCT TEMP PROBE - NO BOX - 4 IN. PROBE - 5 FT. LEADS NO LOGO
NSB-10K-2-D-8-NB-10-A DUCT TEMP PROBE - NO BOX - 8 IN. PROBE -10 FT. LEADS NO LOGO
  • Probe Lengths: 2”, 4”, 8”, 12”, and 18”
  • Series 304 SS Probes & Double Encapsulated Sensors
  • Closed Cell Foam Padding and Etched Teflon Leadwires
  • Several Enclosure Styles
Environmental Operation Range:
  • Temperature Sensor: -40 °C to 100 °C
  • Humidity: 0 to 100%, non-condensing
Enclosure Material:
  • BAPI-Box: Polycarbonate, UL94, V-0
  • BAPI-Box 2: Polycarbonate, UL94, V-0
  • BAPI-Box 4: Nylon & ABS Plastic, UL94, V-0
  • J-Box Model: Galv. Steel
10K-2 Thermistor Sensor:
  • Resistance: 10 kΩ @ 25°C, -55 to 150°C range
  • Standard Accuracy: 0.2°C (±0.36°F) at 0 to 70°C
  • Dissipation Constant: 2.7 mW/°C
  • Stability(drift): Less than ±0.1°C (0.18°F) drift over 10 years
Enclosure Rating:
  • BAPI-Box or BAPI-Box 2: IP66, NEMA 4
  • BAPI-Box 4 Model: IP10 (IP44 with Knockout Plug)
  • J-Box Model: IP20, NEMA 1
Part Number Description
NSB-10K-2-D-12-BB2-A DUCT TEMP PROBE - BB2 ENCLOSURE - 12 IN. PROBE LOGO- ALC
NSB-10K-2-D-4-BB2-A DUCT TEMP PROBE - BB2 ENCLOSURE - 4 IN. PROBE LOGO - ALC
NSB-10K-2-D-8-BB2-A DUCT TEMP PROBE - BB2 ENCLOSURE - 8 IN. PROBE LOGO - ALC
NSB-10K-2-D-4-BB4-A DUCT TEMP PROBE - BB4 ENCLOSURE - 4 IN. PROBE LOGO - ALC
NSB-10K-2-D-8-BB4-A DUCT TEMP PROBE - BB4 ENCLOSURE - 8 IN. PROBE LOGO - ALC
NSB-10K-2-D-12-A DUCT TEMP PROBE - J-BOX ENCLOSURE - 12 IN. PROBE NO LOGO
NSB-10K-2-D-4-A DUCT TEMP PROBE - J-BOX ENCLOSURE - 4 IN. PROBE NO LOGO
NSB-10K-2-D-8-A DUCT TEMP PROBE - J-BOX ENCLOSURE - 8 IN. PROBE NO LOGO
NSB-10K-2-D-4-NB-10-A DUCT TEMP PROBE - NO BOX - 4 IN. PROBE - 10 FT LEADS NO LOGO
NSB-10K-2-D-4-NB-15-A DUCT TEMP PROBE - NO BOX - 4 IN. PROBE - 15 FT. LEADS NO LOGO
NSB-10K-2-D-4-NB-5-A DUCT TEMP PROBE - NO BOX - 4 IN. PROBE - 5 FT. LEADS NO LOGO
NSB-10K-2-D-8-NB-10-A DUCT TEMP PROBE - NO BOX - 8 IN. PROBE -10 FT. LEADS NO LOGO
