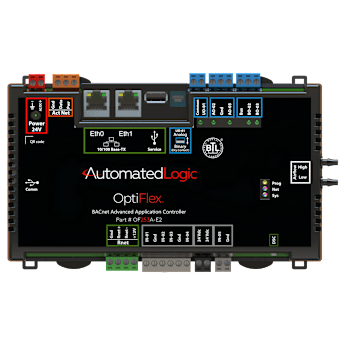

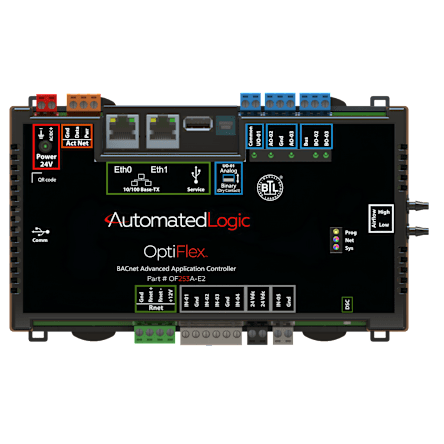

OptiFlex™ Advanced Application Controller – OF253A-E2
The OptiFlex™ OF253A-E2 controller is an integral component of the WebCTRL® building automation system.
The OptiFlex™ Advanced Application Controller, model OF253A-E2, is ideal for zone-level temperature and air quality control applications, and features a built-in flow sensor with a patented flow control algorithm. Factory, pre-engineered ASHRAE Guideline 36 compliant control algorithms reduce energy consumption and increase occupant comfort. Designed to operate in a wide range of environmental conditions, this controller is well suited for equipment boxes, or almost any other weather-tight location.
Application Features
- Versatile controller suitable for a variety of applications, including zone level temperature, air quality, and energy management
- Standard library of control programs available for most unitary equipment and zone applications
- Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
- Supports Automated Logic® communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
- Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
- Supports OptiPoint Smart Valves and accessories
- Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
Hardware Features
- Dual 10/100 Mbps Ethernet ports support native BACnet over IP, daisy-chain. Spanning Tree Protocol (STP) enabled.
- Supports hard-wired and wireless service connections.
- Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
- Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for at least three days
- USB port for local device updates, hard wired and wireless service connections
- Large termination strips for easy installation
- Firmware upgrades can be performed remotely
- DIN rail or screw mounting
System Benefits
- Connects seamlessly to the WebCTRL building automation system
- Versatile controller suitable for a variety of applications, including zone level temperature, air quality, and energy management
- Standard library of control programs available for most unitary equipment and zone applications
- Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
- Supports Automated Logic® communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
- Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
- Supports OptiPoint Smart Valves and accessories
- Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
- Dual 10/100 Mbps Ethernet ports support native BACnet over IP, daisy-chain. Spanning Tree Protocol (STP) enabled.
- Supports hard-wired and wireless service connections.
- Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
- Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for at least three days
- USB port for local device updates, hard wired and wireless service connections
- Large termination strips for easy installation
- Firmware upgrades can be performed remotely
- DIN rail or screw mounting
- Connects seamlessly to the WebCTRL building automation system
