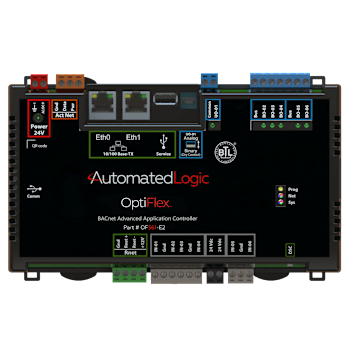

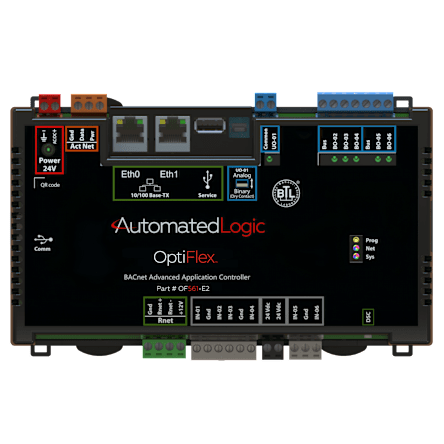

OptiFlex™ Advanced Application Controller – OF561-E2

The OptiFlex advanced application controller, model OF561-E2, is ideal for advanced zone control applications requiring direct connection or daisy chain topology over BACnet/IP. Factory, preengineered ASHRAE Guideline 36 compliant control algorithms reduce energy consumption and increase occupant comfort.

Application Features
  • Versatile controller suitable for a variety of applications, including chilled beams, exhaust fans, unit vents, air curtains, and advanced zone control
  • Standard library of control programs available for most unitary equipment and zone applications
  • Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
  • Supports Automated Logic communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
  • Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
  • Supports OptiPoint smart valves and accessories
  • Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
Hardware Features
  • Dual, Ethernet ports support daisy chain BACnet over IP; Spanning Tree Protocol (STP) enabled
  • Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
  • Capacitor-backed real-time clock keeps time in the event of power failure for at least three days
  • USB port for local device updates; hard-wired and wireless service connections
  • Large termination strips for easy installation
  • Firmware upgrades can be performed remotely
  • DIN rail or screw mounting
  • Can be installed in mechanical rooms, equipment boxes, or almost any other weather-tight location
System Benefits
  • Versatile controller suitable for a variety of applications, including chilled beams, exhaust fans, unit vents, air curtains, and advanced zone control
  • Standard library of control programs available for most unitary equipment and zone applications
  • Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
  • Supports Automated Logic communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
  • Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
  • Supports OptiPoint smart valves and accessories
  • Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
  • Dual, Ethernet ports support daisy chain BACnet over IP; Spanning Tree Protocol (STP) enabled
  • Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
  • Capacitor-backed real-time clock keeps time in the event of power failure for at least three days
  • USB port for local device updates; hard-wired and wireless service connections
  • Large termination strips for easy installation
  • Firmware upgrades can be performed remotely
  • DIN rail or screw mounting
  • Can be installed in mechanical rooms, equipment boxes, or almost any other weather-tight location
