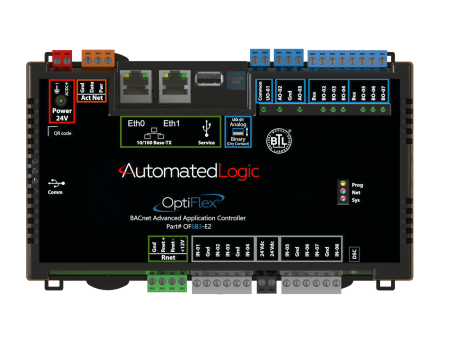

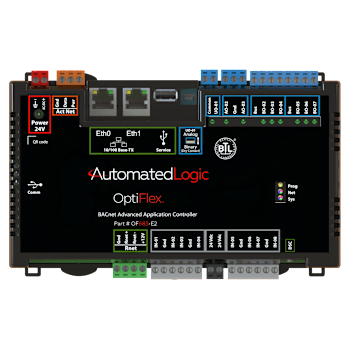

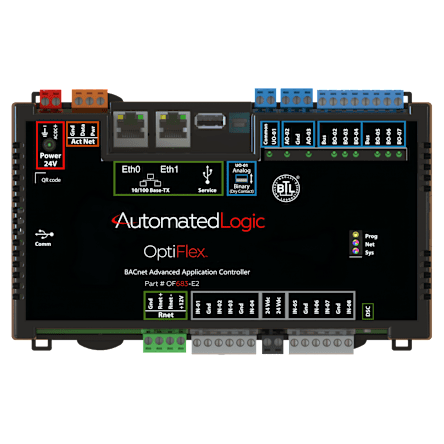

OptiFlex™ Advanced Application Controller – OF683-E2

The OptiFlex™ OF683-E2 controller is an integral component of the WebCTRL® building automation system.

The OptiFlex™ Advanced Application Controller, model OF683-E2, provides a rugged solution for zone level temperature, air quality, and energy management control. Factory, pre-engineered ASHRAE Guideline 36 compliant control algorithms reduce energy consumption and increase occupant comfort. Designed to operate in a wide range of environmental conditions, this controller is well suited for mechanical rooms, equipment boxes, or almost any other weather-tight location.

Application Features
  • Versatile controller suitable for a variety of applications, including zone level temperature, air quality, and energy management
  • Standard library of control programs available for most unitary equipment and zone applications
  • Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
  • Supports Automated Logic® communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
  • Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
  • Supports OptiPoint Smart Valves and accessories
  • Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
Hardware Features
  • Dual 10/100 Mbps Ethernet ports support native BACnet over IP, daisy-chain. Spanning Tree Protocol (STP) enabled.
  • Supports hard-wired and wireless service connections.
  • Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
  • Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for at least three days
  • USB port for local device updates, hard wired and wireless service connections
  • Large termination strips for easy installation
  • Firmware upgrades can be performed remotely
  • DIN rail or screw mounting
System Benefits
  • Versatile controller suitable for a variety of applications, including zone level temperature, air quality, and energy management
  • Standard library of control programs available for most unitary equipment and zone applications
  • Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
  • Supports Automated Logic® communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
  • Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
  • Supports OptiPoint Smart Valves and accessories
  • Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
  • Dual 10/100 Mbps Ethernet ports support native BACnet over IP, daisy-chain. Spanning Tree Protocol (STP) enabled.
  • Supports hard-wired and wireless service connections.
  • Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
  • Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for at least three days
  • USB port for local device updates, hard wired and wireless service connections
  • Large termination strips for easy installation
  • Firmware upgrades can be performed remotely
  • DIN rail or screw mounting
