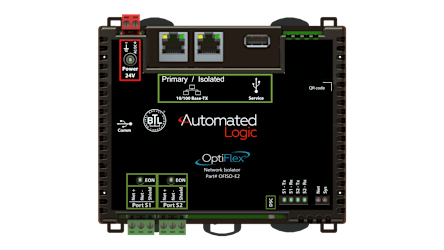

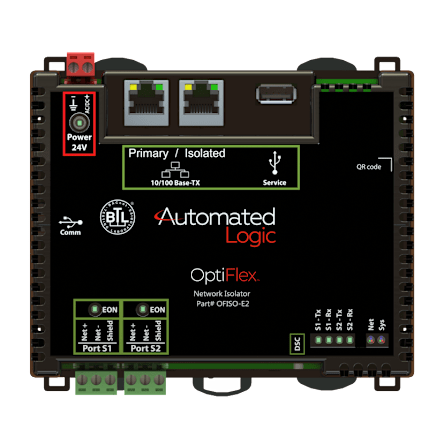

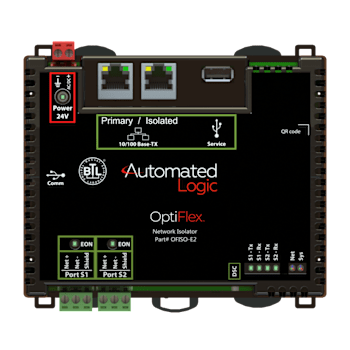

OptiFlex™ Network Isolator - OFISO-E2

Automated Logic’s OptiFlex Network Isolator is the essential router that connects diverse BACnet networks (IP, Ethernet, BACnet Secure Connect, ARCNET, and MS/TP). It provides a critical security layer, isolating your building automation network from external IP traffic. This ensures reliable BACnet communication and enhances security, reducing IT complexity and providing a robust foundation for your building automation system.

Key Features & Benefits
  • Enhanced Network Security: Isolates the building automation network from the broader customer network, creating a robust security layer (firewall) designed to significantly reduce the risk of unauthorized access and mitigate various cyber threats.
  • IT Friendly: Only one IP address required to connect to all the devices on the isolated network.
  • Streamlined Deployment: Includes a built-in DHCP server that automatically assigns isolated IP addresses, simplifying network configuration and reducing installation time.
  • Robust Routing Capability: Seamlessly integrate your system by routing BACnet across all common network types, including IP, Ethernet, BACnet Secure Connect (SC), MS/TP, and ARCNET, ensuring compatibility with both existing and future infrastructure.
  • Flexible Network Connections: Includes 1 primary Ethernet port for IP/Ethernet/SC , 1 isolated Ethernet port for BACnet/IP , and 2 EIA-485 ports (one for BACnet/ARCNET, one for BACnet MS/TP).
  • Easy Configuration and Recovery: A dedicated USB port for system setup.
  • Advanced Diagnostics: Captures network data and statistics for efficient troubleshooting and optimizing system performance.
  • Optimized Broadcast Communication: Functions as a BACnet Broadcast Management Device (BBMD) to manage broadcast communication efficiently on BACnet/ IP networks, reducing traffic, and improving response times.
  • Simplified BACnet Device Integration: Supports Foreign Device Registration (FDR), enabling automatic discovery and registration of third-party BACnet devices to streamline communication within the BACnet network.
  • Compact Footprint: Designed for easy installation, optimizing control panel space.
  • Enhanced Network Security: Isolates the building automation network from the broader customer network, creating a robust security layer (firewall) designed to significantly reduce the risk of unauthorized access and mitigate various cyber threats.
  • IT Friendly: Only one IP address required to connect to all the devices on the isolated network.
  • Streamlined Deployment: Includes a built-in DHCP server that automatically assigns isolated IP addresses, simplifying network configuration and reducing installation time.
  • Robust Routing Capability: Seamlessly integrate your system by routing BACnet across all common network types, including IP, Ethernet, BACnet Secure Connect (SC), MS/TP, and ARCNET, ensuring compatibility with both existing and future infrastructure.
  • Flexible Network Connections: Includes 1 primary Ethernet port for IP/Ethernet/SC , 1 isolated Ethernet port for BACnet/IP , and 2 EIA-485 ports (one for BACnet/ARCNET, one for BACnet MS/TP).
  • Easy Configuration and Recovery: A dedicated USB port for system setup.
  • Advanced Diagnostics: Captures network data and statistics for efficient troubleshooting and optimizing system performance.
  • Optimized Broadcast Communication: Functions as a BACnet Broadcast Management Device (BBMD) to manage broadcast communication efficiently on BACnet/ IP networks, reducing traffic, and improving response times.
  • Simplified BACnet Device Integration: Supports Foreign Device Registration (FDR), enabling automatic discovery and registration of third-party BACnet devices to streamline communication within the BACnet network.
  • Compact Footprint: Designed for easy installation, optimizing control panel space.
