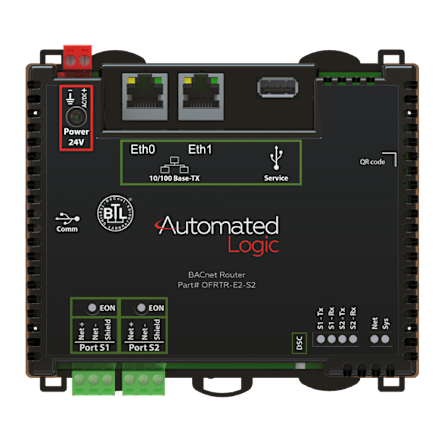

Dual IP BACnet Router - OFRTR-E2-S2
The Dual IP BACnet Router enables seamless integration across modern and legacy building automation networks with dual IP ports for easy daisy‑chain deployment. It supports routing between BACnet/IP, BACnet/Ethernet, BACnet/SC, BACnet/ARCNET (ARC156), and BACnet MS/TP, and includes two serial ports for flexible network expansion or segmentation of ARC156 or MS/TP networks. Designed to protect existing ARC156 network investments, it delivers a cost‑effective path to modern BACnet IP connectivity.
Dual IP BACnet Router - OFRTR-E2-S2
Protects Investments
Provides support for existing infrastructure as a modern replacement for AAR/AMR Routers, designed to preserve network speed and provide serial-to-serial routing for ARC156 to ARC156, ARC156 to MS/TP, and MS/TP to MS/TP networks without requiring a full system overhaul.
High‑Speed, Resilient BACnet Networking
Features two 10/100 Mbps Ethernet ports with a fail‑safe relay and leverages the high‑performance, ASHRAE‑standard BACnet over ARC156 protocol to deliver faster serial communication1—while seamlessly integrating with industry‑standard MS/TP devices for responsive, flexible system designs.
Enhanced Cyber Security
Satisfies rigorous IT/ OT security requirements by combining encrypted BACnet/SC communication (requires BACnet/SC Hub) with the ability to physically disable unused Ethernet ports to help mitigate unauthorized network access.
Simplified BACnet/IP Integration
Supports BACnet Broadcast Management Device (BBMD) functionality and Foreign Device Registration (FDR) for easy, reliable communication across routed and remote BACnet/IP networks.
Compact Design, Simplified System Architecture
A durable, space‑saving enclosure mounts easily on DIN rail or in panels while combining IP and serial routing into a single device—reducing panel complexity.
Simplified Installation & Commissioning
Supports dual‑port daisy‑chaining for fast installation and a wireless service tool for easy commissioning.
Built‑In Diagnostics & Visibility
Supports on-board network diagnostics and network statistics for efficient troubleshooting.
Operational Continuity
Maintains accurate system time for up to three days during power outages via a capacitor-backed real-time clock, protecting the integrity of schedules and trend logs without manual intervention.
1Compared to MS/TP 76.8k
