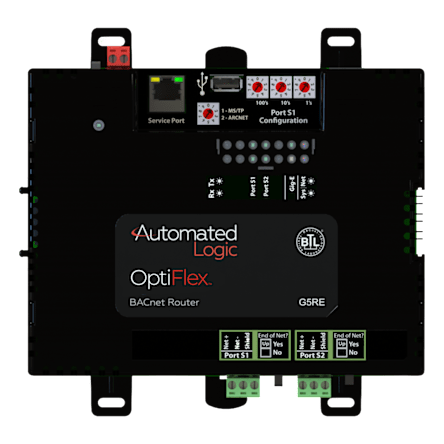

OptiFlex™ BACnet/SC Router - G5RE

The OptiFlex BACnet/SC router, model G5RE, is a high-performance BACnet router that securely routes BACnet messages between a BACnet Secure Connect hub, the WebCTRL building automation system, and other BACnet subnetworks.

BACnet Features
  • Features end-to-end encrypted BACnet Secure Connect (BACnet/ SC) routing between BACnet/SC hubs and the WebCTRL system via BACnet/SC, an encrypted datalink layer specifically designed to meet the requirements, policies, and constraints of minimally-managed to professionally managed IP infrastructures
  • Allows concurrent BACnet networks (BACnet/SC and non-BACnet/SC), allowing facilities to migrate to the BACnet/SC environment over time
  • Includes two additional BACnet ports to support either two simultaneous BACnet MS/TP networks (up to 127 controllers each) to simultaneously route and share data across a wide range of building subsystems
  • Can serve as a BACnet Broadcast Management Device (BBMD) routing any BACnet broadcast messages directly to other BBMD devices on the BACnet network
  • Supports BACnet Foreign Device Registration (FDR)
Hardware Features
  • IPv6 and IPv4 networks are supported
  • Stateless auto-configuration of addresses (SLAAC), static IPv6 addressing, and DHCP IP addressing are supported
  • 1000 BaseT Ethernet port for high-speed communication
  • Password-protected Ethernet service port at 100 Mbps for system start-up and troubleshooting
  • Web sever local access for properties such as network and alarm configuration, notification classes, etc.
System Benefits
  • Connects seamlessly to the WebCTRL building automation system
  • Multiple serial communication ports to simultaneously route and share data across a wide range of building subsystems
  • Features end-to-end encrypted BACnet Secure Connect (BACnet/ SC) routing between BACnet/SC hubs and the WebCTRL system via BACnet/SC, an encrypted datalink layer specifically designed to meet the requirements, policies, and constraints of minimally-managed to professionally managed IP infrastructures
  • Allows concurrent BACnet networks (BACnet/SC and non-BACnet/SC), allowing facilities to migrate to the BACnet/SC environment over time
  • Includes two additional BACnet ports to support either two simultaneous BACnet MS/TP networks (up to 127 controllers each) to simultaneously route and share data across a wide range of building subsystems
  • Can serve as a BACnet Broadcast Management Device (BBMD) routing any BACnet broadcast messages directly to other BBMD devices on the BACnet network
  • Supports BACnet Foreign Device Registration (FDR)
  • IPv6 and IPv4 networks are supported
  • Stateless auto-configuration of addresses (SLAAC), static IPv6 addressing, and DHCP IP addressing are supported
  • 1000 BaseT Ethernet port for high-speed communication
  • Password-protected Ethernet service port at 100 Mbps for system start-up and troubleshooting
  • Web sever local access for properties such as network and alarm configuration, notification classes, etc.
  • Connects seamlessly to the WebCTRL building automation system
  • Multiple serial communication ports to simultaneously route and share data across a wide range of building subsystems
