SE563sp

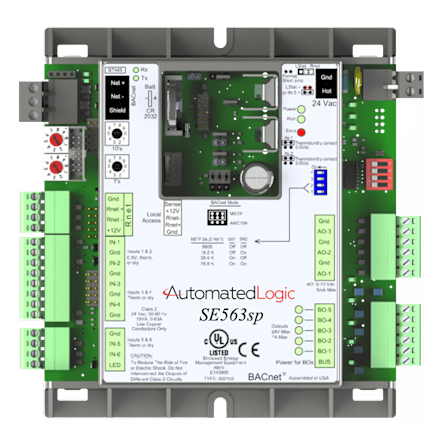

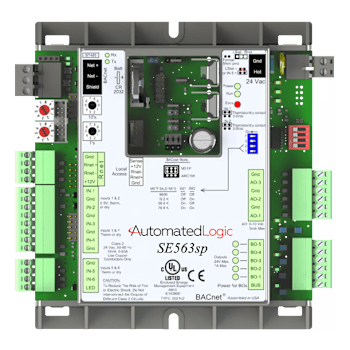

The Automated Logic® SE563sp controller is an integral component of the WebCTRL® building automation system.

The SE563sp is a fully programmable, native BACnet Advanced Application Controller (AAC) well suited for rooftop units, mechanical rooms, equipment closets, or almost any other weather-tight location. Fully programmable using the EIKON® software graphic programming language, the SE563sp controllers use native BACnet communications over either a high-speed ARCNET 156 kbps network or a medium-speed MS/TP network to provide maximum flexibility and interoperability.

This model supports 1 program and 300 objects.

Application Features
  • Versatile controller suitable for a variety of applications, including rooftop units, pumping systems, and boilers
  • A standard library of control programs is available for most single equipment applications
  • Supports EIKON® graphical programming software, an object-oriented tool that provides complete flexibility for any custom control sequence that you need
  • Supports Automated Logic communicating sensors, which are available in a variety of zone sensing combinations and support setpoint adjustment and occupancy overrides
  • Supports Automated Logic touchscreen interfaces for managing and troubleshooting the connected equipment easily
  • Supports live, visual displays of control logic, which uses real-time operational data and aids in optimizing and troubleshooting system operations
Hardware Features
  • Controls up to 14 points (5 binary outputs, 6 inputs, and 3 analog outputs)
  • High-speed, native BACnet over ARC156 communications delivers high-speed response when you need it
  • Supports native BACnet over MS/TP communications when required
  • Fast, powerful, and fully distributed control allows complete independence from any other devices in the system
  • Firmware upgrades can be performed remotely
  • Easy startup and commissioning using the WebCTRL system user interfaces
  • The battery-backed real-time clock keeps time in the event of power failure or network interruption
System Benefits
  • Versatile controller suitable for a variety of applications, including rooftop units, pumping systems, and boilers
  • A standard library of control programs is available for most single equipment applications
  • Supports EIKON® graphical programming software, an object-oriented tool that provides complete flexibility for any custom control sequence that you need
  • Supports Automated Logic communicating sensors, which are available in a variety of zone sensing combinations and support setpoint adjustment and occupancy overrides
  • Supports Automated Logic touchscreen interfaces for managing and troubleshooting the connected equipment easily
  • Supports live, visual displays of control logic, which uses real-time operational data and aids in optimizing and troubleshooting system operations
  • Controls up to 14 points (5 binary outputs, 6 inputs, and 3 analog outputs)
  • High-speed, native BACnet over ARC156 communications delivers high-speed response when you need it
  • Supports native BACnet over MS/TP communications when required
  • Fast, powerful, and fully distributed control allows complete independence from any other devices in the system
  • Firmware upgrades can be performed remotely
  • Easy startup and commissioning using the WebCTRL system user interfaces
  • The battery-backed real-time clock keeps time in the event of power failure or network interruption
