ZASF-A

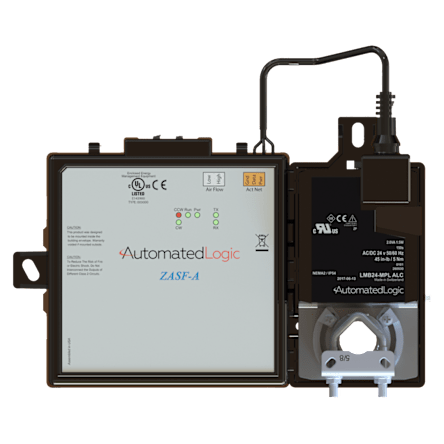

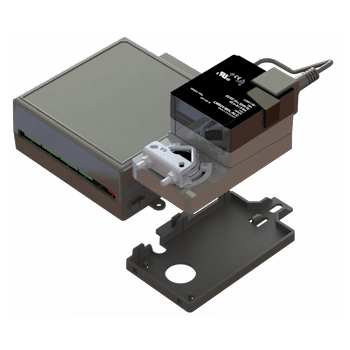

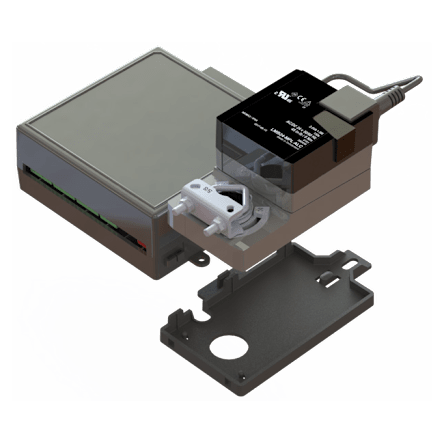

The Automated Logic® ZASF-A secondary VAV damper is an integral component of the WebCTRL® building automation system.

The ZASF-A is explicitly intended for VAV terminal box applications and is designed to be used with the ZN341A and ZN141A. It mounts directly on the secondary VAV damper shaft. It provides an integral actuator and a second integrated flow sensor for damper positioning and air-flow sensing in dual duct or tracking systems.

Key Features and Benefits

Application Features

  • Quick & easy test and balancing process

Hardware Features

  • Separable actuator with a 45 inch-pound (5 Nm) torque rating that can be mounted up to a maximum distance of 300 feet from the controller
  • Precision differential pressure sensor and advanced VAV algorithm increase occupant comfort at both minimum and maximum design air flows, while also extending actuator life

Seamless Integration with the WebCTRL System

  • Connects seamlessly to the WebCTRL building automation system.

Application Features

  • Quick & easy test and balancing process

Hardware Features

  • Separable actuator with a 45 inch-pound (5 Nm) torque rating that can be mounted up to a maximum distance of 300 feet from the controller
  • Precision differential pressure sensor and advanced VAV algorithm increase occupant comfort at both minimum and maximum design air flows, while also extending actuator life

Seamless Integration with the WebCTRL System

  • Connects seamlessly to the WebCTRL building automation system.
