FDD Reporting & Dashboards

The Automated Logic Fault Detection and Diagnostics (FDD) library in the WebCTRL® system can pinpoint over 100 proven faults in typical HVAC equipment, including VAV systems, air handlers, fan coils, unit ventilators, water-source heat pumps, and air-source heat pumps.

Pre-programmed FDD algorithms are a standard feature of the WebCTRL building automation system and will alert building staff of potential equipment issues, help them identify the cause, and provide a visual display of preventive solutions. FDD can help reduce energy consumption, capital costs, and equipment wear and tear.

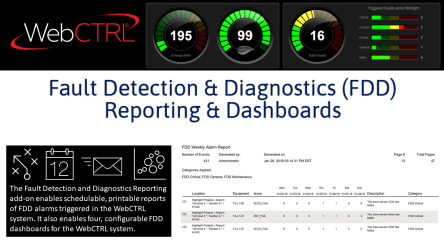

This add-on allows users to view FDD reports and dashboards that are reported by the WebCTRL system.

Key Features & Benefits
  • Pre-programmed algorithms that will alert building staff of potential equuipment issues.
  • Configure and schedule emails of a Fault Detection and Diag-nostic report in .pdf and/or .csv file format to desired recipients.
  • Includes modifiable dashboards for your WebCTRL system.
Requirements
  • WebCTRL v6.5 system with the latest cumulative patch applied
  • Operating system supports either Internet Explorer® v11 or Chrome™ v44.0 or later browser
  • You have added FDD logic to your control programs
  • .PDF viewer such as Adobe® Reader®
  • Purchased and downloaded the Fault Detection and Diagnostics reporting license
  • Pre-programmed algorithms that will alert building staff of potential equuipment issues.
  • Configure and schedule emails of a Fault Detection and Diag-nostic report in .pdf and/or .csv file format to desired recipients.
  • Includes modifiable dashboards for your WebCTRL system.
  • WebCTRL v6.5 system with the latest cumulative patch applied
  • Operating system supports either Internet Explorer® v11 or Chrome™ v44.0 or later browser
  • You have added FDD logic to your control programs
  • .PDF viewer such as Adobe® Reader®
  • Purchased and downloaded the Fault Detection and Diagnostics reporting license
