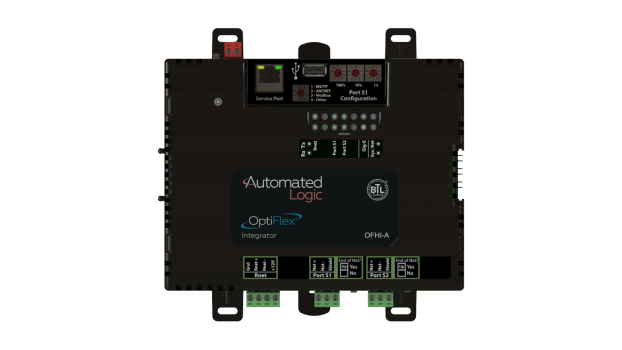

OptiFlex™ Integrator - OFHI-A

The Automated Logic® OptiFlex™ Integrator is an integral component of the WebCTRL® building automation system. The OptiFlex Integrator supports routing between multiple BACnet networks. It also supports custom control programs to easily integrate with third-party BACnet or Modbus equipment such as variable speed drives, boilers, and lighting.

Protocol Features
  • Supports routing between BACnet/IP, BACnet/Ethernet, BACnet ARCnet, and BACnet MS/TP networks
  • Supports up to
    • 12,000 network visible BACnet objects
    • 1,000 Modbus points
    • 1,500 third party BACnet points
  • Includes two additional BACnet ports for supporting either two simultaneous BACnet MS/TP networks (with up to 60 controllers each), or one ARCnet network (with up to 99 ARCnet controllers) and one BACnet MS/TP network (with up to 60 controllers)
  • Can serve as a BACnet Broadcast Management Device (BBMD), routing any BACnet broadcast messages directly to other BBMD devices on the BACnet network
  • Supports BACnet Foreign Device Registration (FDR)
Hardware Features
  • Supports and executes control programs
  • Supports up to two BACnet/IP networks on the Gig-E port
  • Supports Gig-E, 1,000Mbps BACnet IP and DHCP IP addressing
  • Ethernet port provides local access for system start-up and troubleshooting
  • Supports network captures for advanced diagnostics
  • Provides network statistics numerically or as trend graphs inside the WebCTRL building automation system
  • Supports DIN rail and screw mounting
  • Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for up to three days
System Benefits
  • Connects seamlessly to the WebCTRL building automation system
  • Supports routing between BACnet/IP, BACnet/Ethernet, BACnet ARCnet, and BACnet MS/TP networks
  • Supports up to
    • 12,000 network visible BACnet objects
    • 1,000 Modbus points
    • 1,500 third party BACnet points
  • Includes two additional BACnet ports for supporting either two simultaneous BACnet MS/TP networks (with up to 60 controllers each), or one ARCnet network (with up to 99 ARCnet controllers) and one BACnet MS/TP network (with up to 60 controllers)
  • Can serve as a BACnet Broadcast Management Device (BBMD), routing any BACnet broadcast messages directly to other BBMD devices on the BACnet network
  • Supports BACnet Foreign Device Registration (FDR)
  • Supports and executes control programs
  • Supports up to two BACnet/IP networks on the Gig-E port
  • Supports Gig-E, 1,000Mbps BACnet IP and DHCP IP addressing
  • Ethernet port provides local access for system start-up and troubleshooting
  • Supports network captures for advanced diagnostics
  • Provides network statistics numerically or as trend graphs inside the WebCTRL building automation system
  • Supports DIN rail and screw mounting
  • Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for up to three days
  • Connects seamlessly to the WebCTRL building automation system
