Low Profile Button Sensor

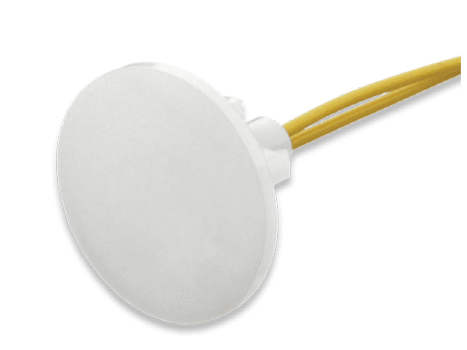

The Automated Logic Low Profile Pressure Pickup Port is ideal for locations where aesthetics are as important as the pressure measurement. The only visible portion is a flush 7/8” dot on the wall. The brass fitting on the back accommodates standard 1/8” to 5/32” I.D. tubing

KEY FEATURES
  • Economical & Easy to Install
  • 80 Micron Filter
  • Accommodates 1/8” I.D. to 5/32” I.D. Tubing
PART NUMBER AND DESCRIPTION
Part Number Description
NSB-ZPS-ACC20-A Low Profile Pressure Pickup Port
SPECIFICATIONS
Environmental Operation Range:
  • Temp: -40 to 185ºF (-40 to 85ºC)
  • Humidity: 0% to 100% RH, non-condensing
Material
  • ABS Plastic, UL 94, V-0
  • Economical & Easy to Install
  • 80 Micron Filter
  • Accommodates 1/8” I.D. to 5/32” I.D. Tubing
Part Number Description
NSB-ZPS-ACC20-A Low Profile Pressure Pickup Port
Environmental Operation Range:
  • Temp: -40 to 185ºF (-40 to 85ºC)
  • Humidity: 0% to 100% RH, non-condensing
Material
  • ABS Plastic, UL 94, V-0
