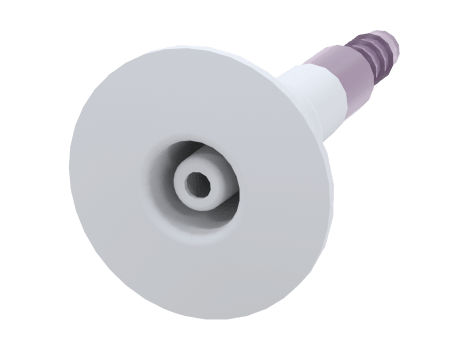

Low Profile Pressure Pickup Port

The Automated Logic Low Profile Pressure Pickup Port is ideal for locations where aesthetics are as important as the pressure measurement. The only visible portion is a flush 7/8” dot on the wall. The brass fitting on the back accommodates standard 1/8” to 5/32” I.D. tubing.

KEY FEATURES
  • Economical & Easy to Install
  • 80 Micron Filter
  • Accommodates 1/8” I.D. to 5/32” I.D. Tubing
PART NUMBER AND DESCRIPTION
Part Number Description
NSB-ZPS-ACC20-A Low Profile Pressure Pickup Port
SPECIFICATIONS
Environmental Operation Range:
  • Temp: -40 to 185ºF (-40 to 85ºC)
  • Humidity: 0% to 100% RH, non-condensing
Material
  • ABS Plastic, UL 94, V-0
  • Economical & Easy to Install
  • 80 Micron Filter
  • Accommodates 1/8” I.D. to 5/32” I.D. Tubing
Part Number Description
NSB-ZPS-ACC20-A Low Profile Pressure Pickup Port
Environmental Operation Range:
  • Temp: -40 to 185ºF (-40 to 85ºC)
  • Humidity: 0% to 100% RH, non-condensing
Material
  • ABS Plastic, UL 94, V-0
