OptiPoint™ Equipment Touch
GRAPHICAL TOUCHSCREEN CONTROL STATIONS

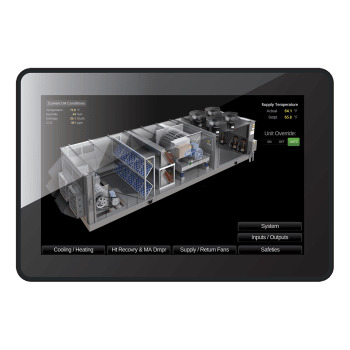

Automated Logic OptiPoint™ Equipment Touch (EQT) provides building operators and technicians with visibility and control over a single piece of HVAC equipment via the Rnet service port. The interface features an illuminated color, capacitive touchscreen display and is designed to connect to a single WebCTRL® controller, making management of the connected HVAC equipment both intuitive and simple.
file_downloadSPEC SHEET (displays)
file_downloadSPEC SHEET (mounting kit)
Key Features and Benefits
- Draw occupant’s attention to important information with conditional alarming, color changes, and graphic animations
- Features a high resolution, multi-touch capacitive screen
- Support for 13 international languages and characters
- Can serve as a technician’s HVAC equipment interface
- Connects directly to a single WebCTRL controller
- Multi-level password protection for security
- View trends, with added support for pinch/zoom and swiping to move along timeline
- Access virtually any point in the controller
- View and edit BACnet time schedules
- View all alarms in controller
- Change setpoints easily
Hardware Features
- Industrial grade display and able to handle most indoor environments
- Fanless cooling system and ultra-low power consumption
- Wall and panel mount capable
- Elegant & smooth display with clean black bezel
Programming Features
- Easily programmable using ViewBuilder WYSIWYG editor, which includes a library of interactive controls
- Supports standard Equipment Touch files
- Graphics support
- USB-C port for local device updates
- Supports screen capture to USB flash drive
- Built-in PDF viewer
