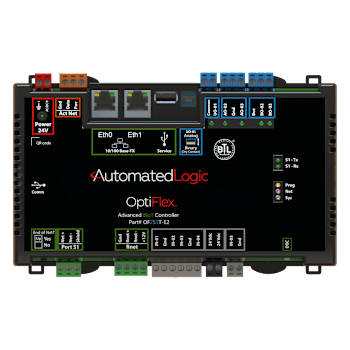

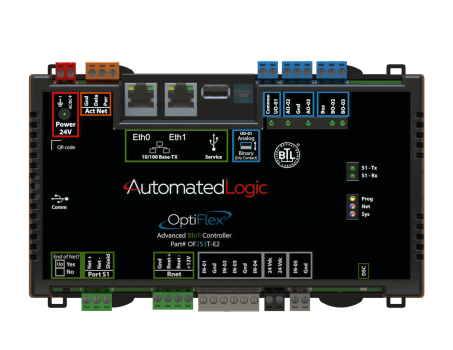

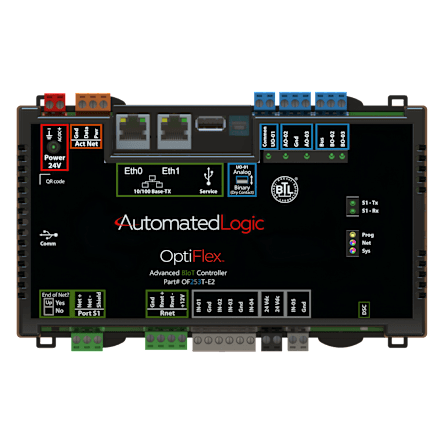

OptiFlex™ Advanced Equipment Controller – OF253T-E2

The OptiFlex™ OF253T-E2 controller is an integral component of the WebCTRL® building automation system.

The OptiFlex™ Advanced Equipment Controller, model OF253T-E2, is ideal for or small equipment control applications such as chilled beams, exhaust fans, unit vents, air curtains, and advanced zone control applications requiring direct connection or daisy chain topology over BACnet/IP and integration of devices such as VFDs, electric meters, lighting systems and Modbus occupancy sensors. Designed to operate in a wide range of environmental conditions, these controllers can be used in mechanical rooms, equipment boxes, or almost any other weather-tight location.

Application Features
  • Standard library of control programs available for most unitary equipment and zone applications
  • Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
  • Supports Automated Logic® communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
  • Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
  • Supports OptiPoint Smart Valves and accessories
  • Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
Hardware Features
  • Dual 10/100 Mbps Ethernet ports support BACnet IP and DCHP IP addressing
  • Supports 50 Modbus points for system integration via Port S1
  • Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
  • Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for at least three days
  • USB port for local device updates, hard wired and wireless service connections
  • Large termination strips for easy installation
  • Firmware upgrades can be performed remotely
  • DIN rail or screw mounting



System Benefits
  • Standard library of control programs available for most unitary equipment and zone applications
  • Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
  • Supports Automated Logic® communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
  • Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
  • Supports OptiPoint Smart Valves and accessories
  • Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
  • Dual 10/100 Mbps Ethernet ports support BACnet IP and DCHP IP addressing
  • Supports 50 Modbus points for system integration via Port S1
  • Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
  • Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for at least three days
  • USB port for local device updates, hard wired and wireless service connections
  • Large termination strips for easy installation
  • Firmware upgrades can be performed remotely
  • DIN rail or screw mounting
