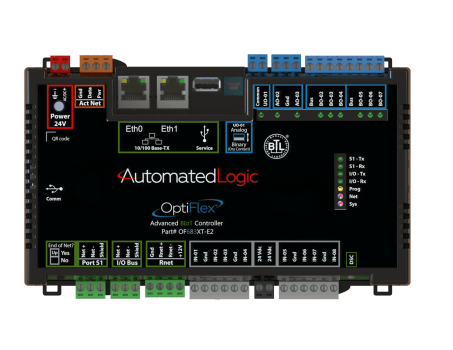

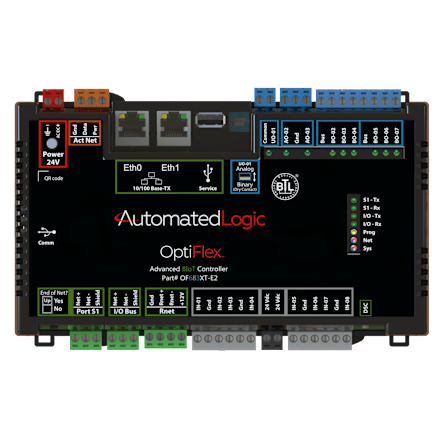

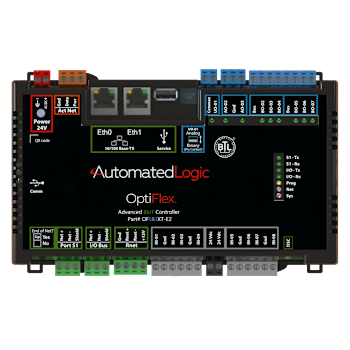

OptiFlex™ Advanced Equipment Controller – OF683XT-E2

The OptiFlex™ OF683XT-E2 controller is an integral component of the WebCTRL® building automation system.

The OptiFlex™ Advanced Equipment Controller, model OF683XT-E2, is ideal for equipment control applications such as rooftop units, small air handling units, and advanced zone control applications requiring direct connection or daisy chain topology over BACnet/IP and integration of devices such as VFDs, electric meters, MS/TP relays, lighting systems and Modbus occupancy sensors. Designed to operate in a wide range of environmental conditions, these controllers can be used in mechanical rooms, equipment boxes, or almost any other weather-tight location.

Application Features
  • Standard library of control programs available for most unitary equipment and zone applications
  • Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
  • Supports Automated Logic® communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
  • Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
  • Supports OptiPoint Smart Valves and accessories
  • Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
  • All programs and historical data are stored in non-volatile memory, eliminating the need for batteries
Hardware Features
  • Supports AEC I/O expanders via the I/O bus port
  • Dual 10/100 Mbps Ethernet ports support BACnet IP and DCHP IP addressing
  • Supports 50 Modbus points for system integration via Port S1
  • Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
  • Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for at least three days
  • USB port for local device updates, hard wired and wireless service connections
  • Large termination strips for easy installation
  • Firmware upgrades can be performed remotely
  • DIN rail or screw mounting



System Benefits
  • Standard library of control programs available for most unitary equipment and zone applications
  • Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
  • Supports Automated Logic® communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
  • Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
  • Supports OptiPoint Smart Valves and accessories
  • Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
  • All programs and historical data are stored in non-volatile memory, eliminating the need for batteries
  • Supports AEC I/O expanders via the I/O bus port
  • Dual 10/100 Mbps Ethernet ports support BACnet IP and DCHP IP addressing
  • Supports 50 Modbus points for system integration via Port S1
  • Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
  • Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for at least three days
  • USB port for local device updates, hard wired and wireless service connections
  • Large termination strips for easy installation
  • Firmware upgrades can be performed remotely
  • DIN rail or screw mounting
