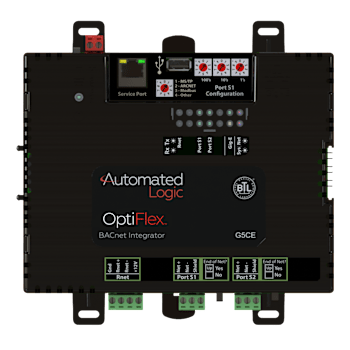

OptiFlex™ BACnet Integrator - G5CE
The OptiFlex™ BACnet Integrator (G5CE) delivers powerful integration, routing, and control for the WebCTRL building automation system. It supports BACnet Secure Connect and advanced third-party system integration to unify building data. The G5CE also serves as a Google® UDMI-compliant gateway and device.
OptiFlex™ BACnet Integrator - G5CE
Integration Features
Securely routes communication between controllers and the WebCTRL system via BACnet Secure Connect, an end-to-end encrypted communication protocol specifically designed to meet the requirements, policies, and constraints of minimally managed to professionally managed IP infrastructures
Ships with 25 “any protocol” points, 1,500 BACnet points and is expandable up to 3,025 total integration points
Allows concurrent BACnet networks (BACnet/SC and non-BACnet/SC), allowing facilities to migrate to the BACnet/SC environment over time
Includes two serial ports BACnet/ARCNET networks (up to 254 ARCNET controllers), BACnet MS/TP networks (up to 127 controllers) or Modbus to simultaneously route and share data across a wide range of building subsystems
Can serve as a BACnet Broadcast Management Device (BBMD), routing any BACnet broadcast messages directly to other BBMD devices on the BACnet network
Supports BACnet Foreign Device Registration (FDR)
Can act as a Modbus server or client on a Modbus TCP/ IP serial network
Hardware Features
Supports DHCP addressing on IPv4 networks and DHCPv6 and SLAAC addressing on IPv6 networks
Supports KNX, Modbus TCP, N2 Open, SNMP on the gigabit Ethernet port
Ethernet port provides local access for system start-up and troubleshooting
Supports network captures for advanced diagnostics
Provides network statistics numerically or as trend graphs inside the WebCTRL building automation system
Supports DIN rail and screw mounting
Capacitor-backed real-time clock keeps time in the event of power failure for up to three days with no battery
System Benefits
Connects seamlessly to the WebCTRL building automation system
